LLM(七)——参数高效微调（Parameter-efficient fine-tuning,PEFT）

随着模型变得越来越大，在消费级硬件上对模型进行全部参数的微调变得不可行。此外，为每个下游任务独立存储和部署微调模型变得非常昂贵，因为微调模型与原始预训练模型的大小相同。参数高效微调(PEFT) 方法旨在解决这两个问题！PEFT 方法使您能够获得与全参数微调相当的性能，同时只有少量可训练参数。

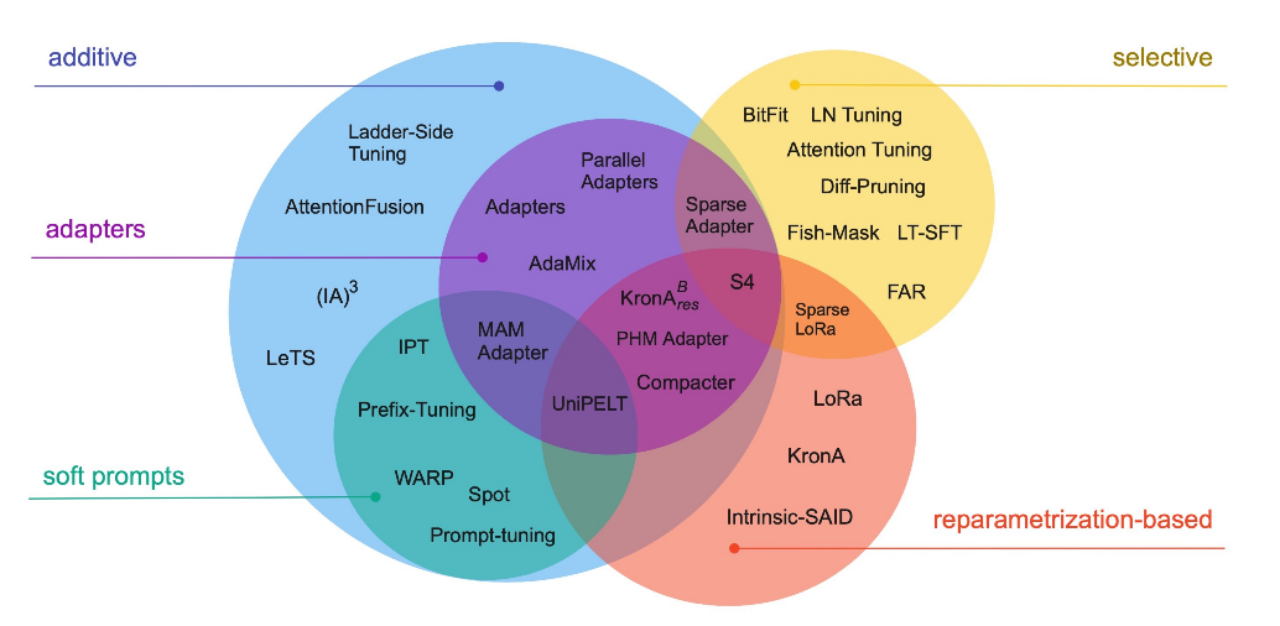

一、PEFT类型

Additive methods

Additive methods的主要思想是通过添加额外的参数或层来扩充现有的Pre-Trained models，仅对新添加的参数进行训练。主要有两个类别：Adapter和Soft Prompt。

Adapter是在Transformer架构中引入小的全连接可训练层。而Soft Prompt旨在通过保持其结构固定和冻结来修改输入Prompt，从而控制LLM的行为。

Selective Methods

选择性方法对模型现有的参数进行微调，可以是基于层深度的选择、基于层类型的选择，甚至是个别参数的选择。其中一个例子是注意力调整。这些基于选择性的方法的性能有好有坏，并且在参数效率和计算效率之间存在明显的折中。

Reparametrization-based methods

基于重新参数化的PEFT方法利用Low-Rank Approximation性质来最小化可训练参数的数量。Low-Rank Matrix旨在捕捉高维数据的潜在Low-Rank结构。该方法冻结原始LLM参数，通过建立新的Low-Rank转换并引入少量可训练参数。

1.1 代表性PEFT方法

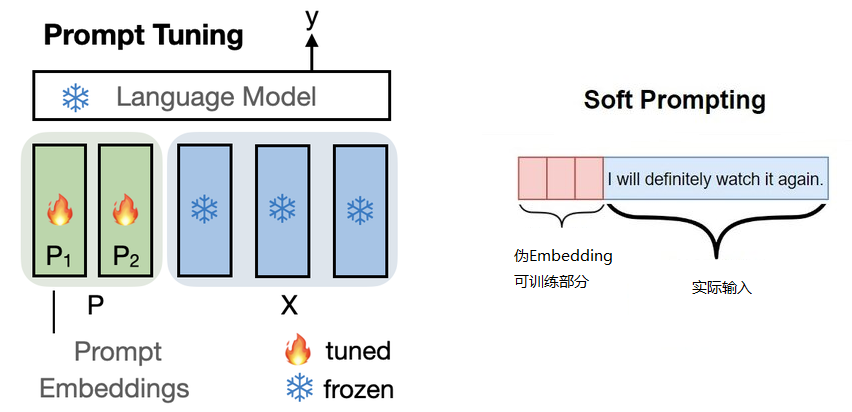

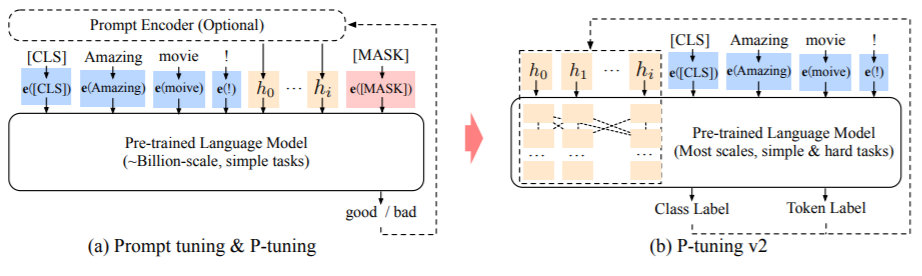

1.1.1 Prompt Tuning

• 在输入序列前，额外加入一组伪 Embedding 向量
• 只训练这组伪 Embedding，从而达到参数微调的效果

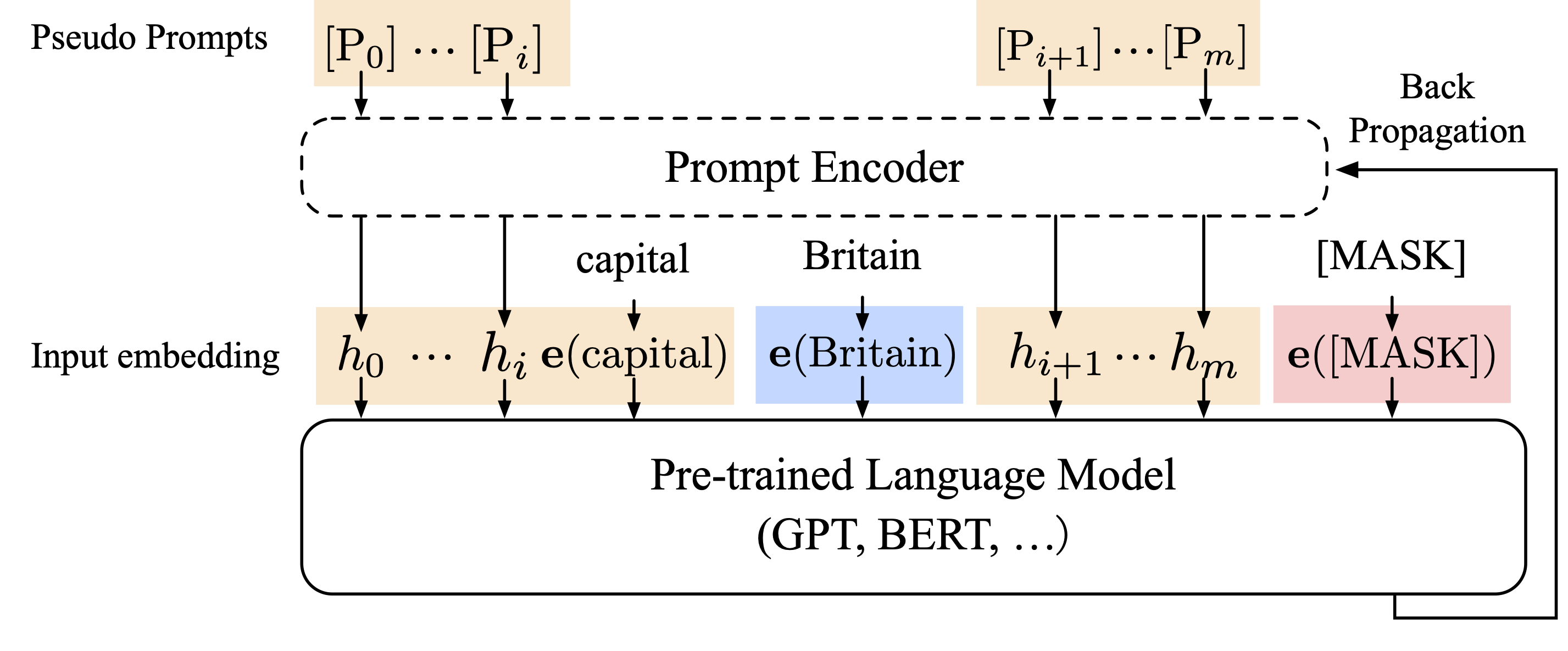

1.1.2 P-Tuning

• 用一个生成器生成上述伪 Embedding
• 只有生成器的参数是可训练的

1.1.3 Prefix-Tuning

• 伪造前面的 Hidden States
• 只训练伪造的这个 Prefix

1.1.4 LoRA

• 在 Transformer 的参数矩阵上加一个低秩矩阵（）
• 只训练 A，B
• 理论上可以把上述方法应用于 Transformer 中的任意参数矩阵，包括 Embedding 矩阵
• 通常应用于 Query, Value 两个参数矩阵

对于预训练权重 ，将计算隐藏层数值的公式修改成

使用低秩矩阵分解()来限制更新，并且。和都与相同的输入相乘。在训练过程中被冻结并且不接收梯度更新。

QLoRA

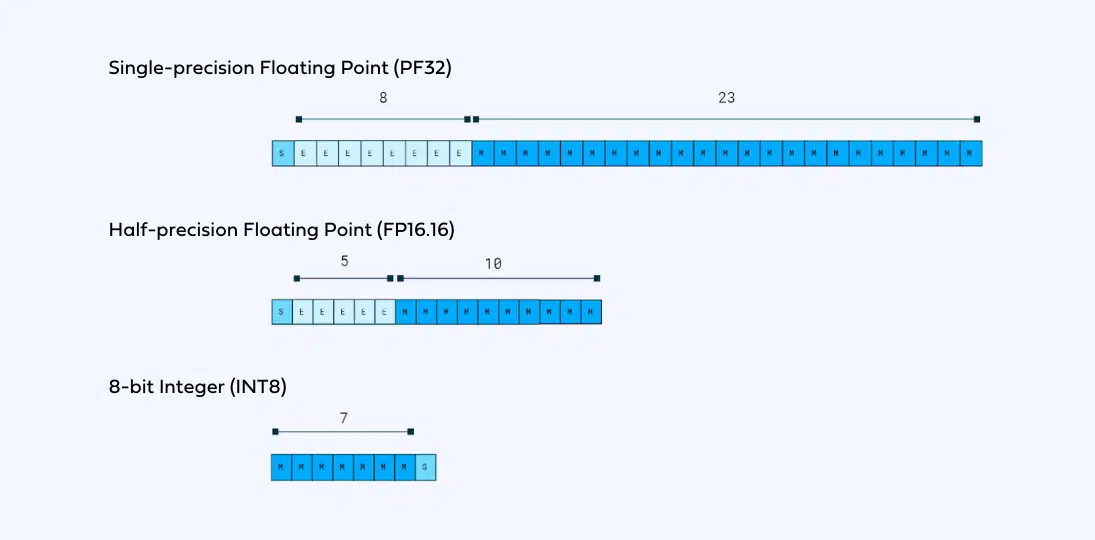

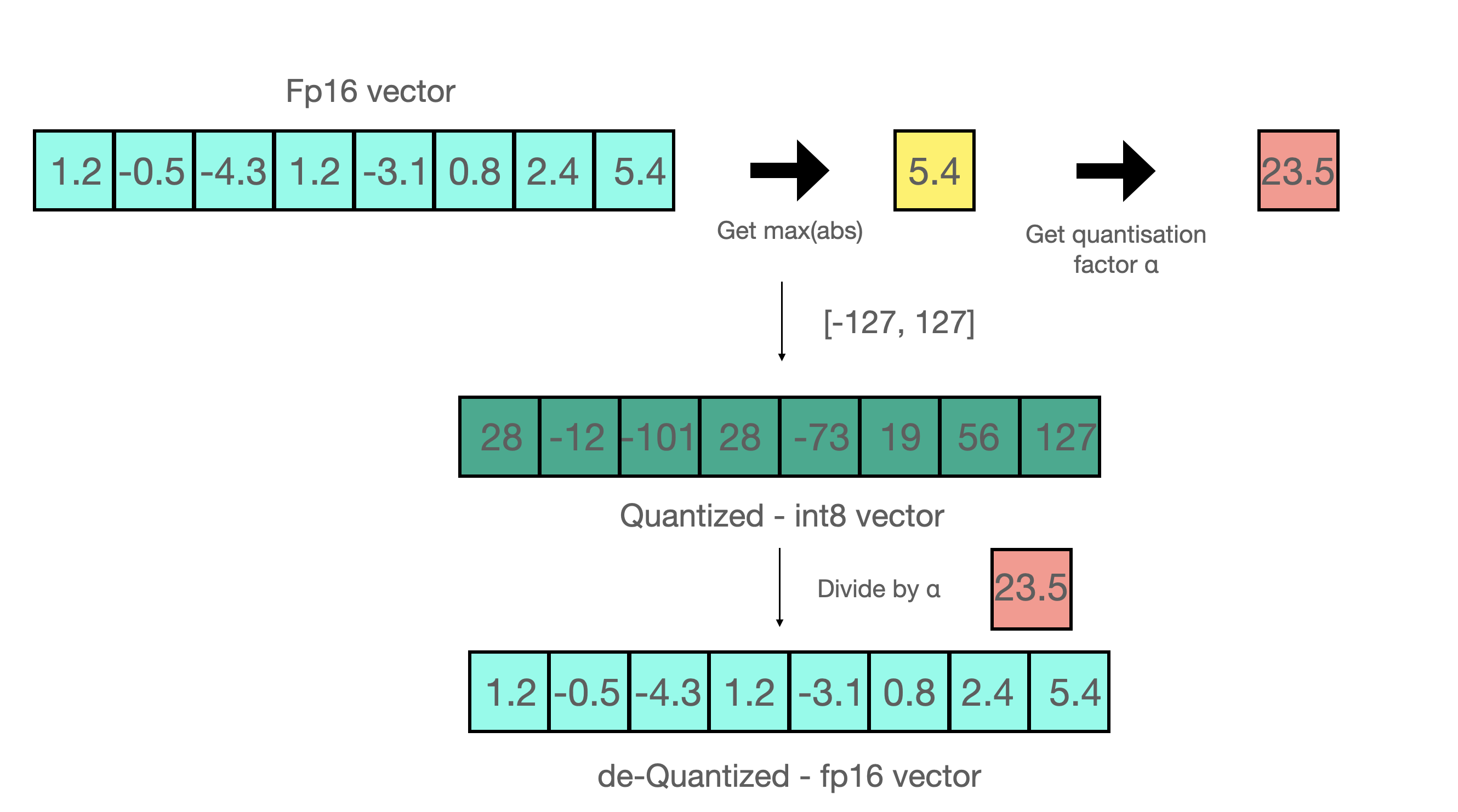

什么是模型量化

更多参考: https://huggingface.co/blog/hf-bitsandbytes-integration

QLoRA 引入了许多创新来在不牺牲性能的情况下节省显存：

• 4 位 NormalFloat（NF4），一种对于正态分布权重而言信息理论上最优的新数据类型
• 双重量化，通过量化量化常数来减少平均内存占用
• 分页优化器，用于管理内存峰值

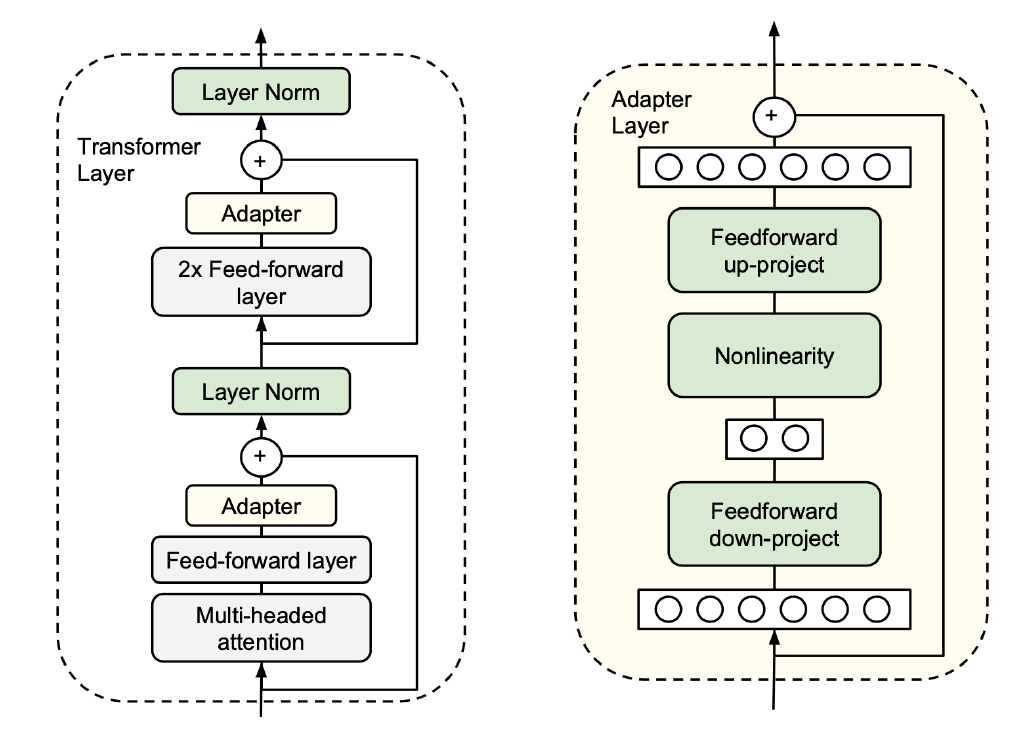

1.1.5 Adapter

Adapter层是加在两个前馈层后面的，所以Adapter方法需要微调的参数就是新增的Adapter层，微调参数量会随着transformer的层数线性增长。

Adapter层是一个瓶颈结构，先把原始的维特征投影到一个更小的维度，之后应用非线性函数，最后再次投影回维。包括偏置在内，每层添加的总参数数量是。通过设置来保证每个Adapter层的参数量不会很大。

注意到Adapter层也是一个残差结构，所以只要把主路径上的全连接层参数初始化为0，Adapter在一开始的时候就相当于一个全等变换，这样相当于啥也没加，网络应该可以train得起来。

Adapter和微调最后几层transformer的效果，发现Adapter在相同参数量的情况下基本能够超过后者，在参数量小两个数据级的时候也能达到接近的效果，这说明Adapter在少参数微调的时候还是比较有性价比的。

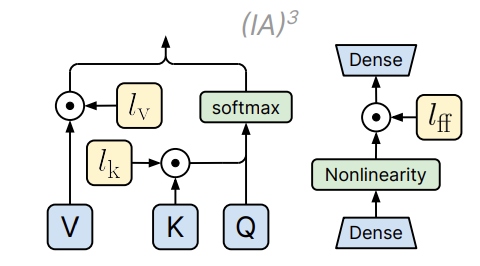

1.1.6 IA3

具体来说作者修改了Attention，对其加入和

然後在 position-wise feed-forward networks 加入

是网络中的非线性层。作者對每一個 Transformer layer 都做了一樣的改動。
​

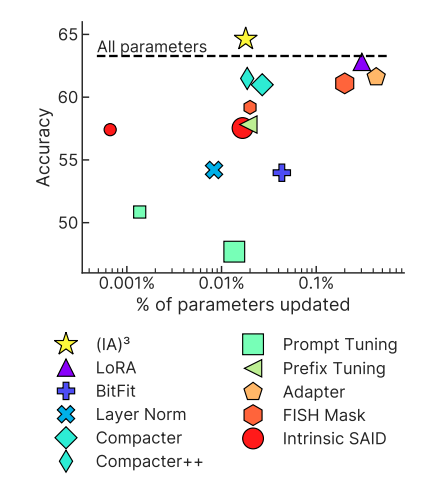

在few-shot训练集上，IA3用少量参数赢过其他微调方法，并且比Full Fine-Tuning还要好。

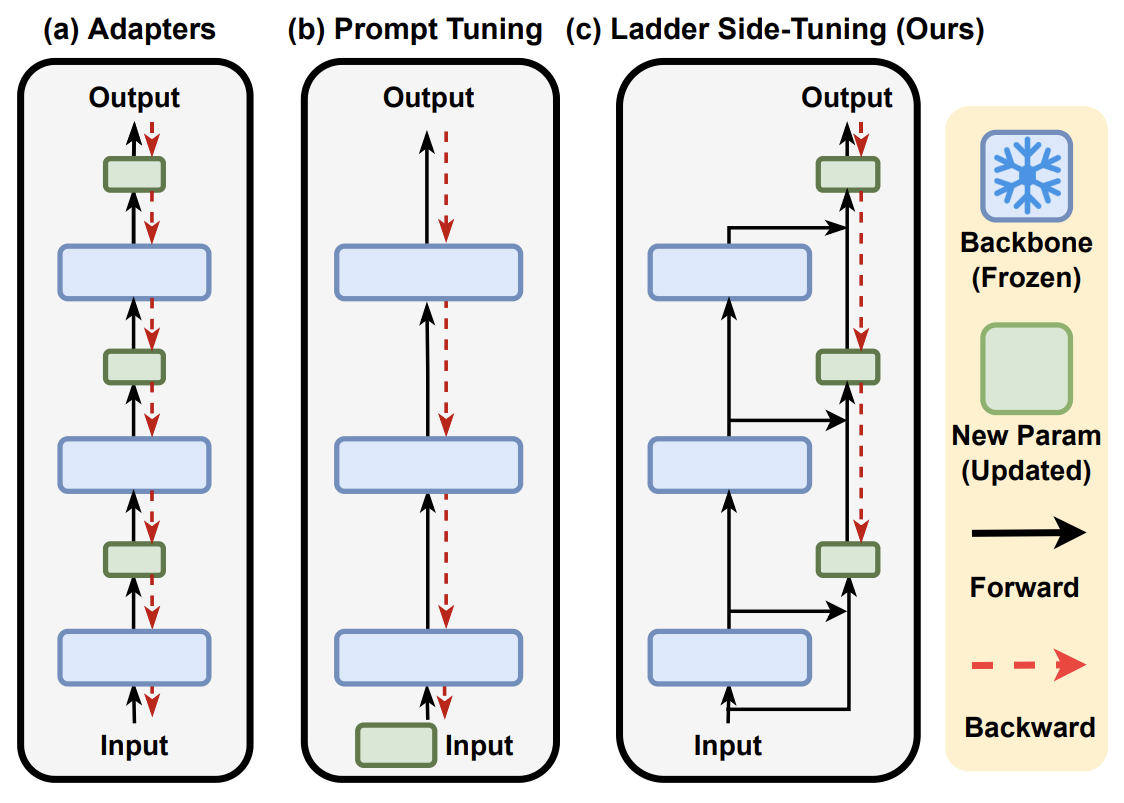

1.1.7 Ladder Side-Tuning

反向传播，也就是求模型梯度，是从输出层向输入层逐步计算的，因此反向传播的深度/计算量，取决于最靠近输入层的参数深度，跟可训练的参数量没有太必然的联系。对于Adapter来说，它在每一层后面都插入了一个小规模的层，虽然其余参数都固定了，只有新插入的层可训练，但每一层都新层，所以反向传播要传到输入层；对于P-tuning来说，本质上它是只有在Embedding层中有少量可训练参数，但Embedding层是输入层，因此它的反向传播也要贯穿整个模型。因此，这两种方案能提升的训练效率并不多。

至于LST，它是在原有大模型的基础上搭建了一个“旁支”（梯子），将大模型的部分层输出作为旁枝模型的输入，所有的训练参数尽在旁枝模型中，由于大模型仅提供输入，因此反向传播的复杂度取决于旁枝模型的规模，并不需要直接在原始大模型上执行反向传播，因此是可以明显提升训练效率的。

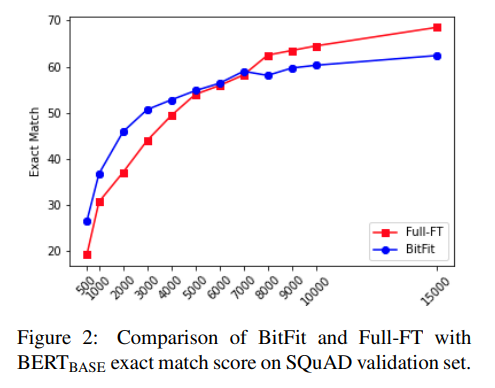

1.1.8 BitFit

BitFit仅微调网络的Bias。BitFit仅更新模型约0.05%的参数量。

BitFit是一个非常简单的方法，但性能表现比Full Fine-Tuning差。

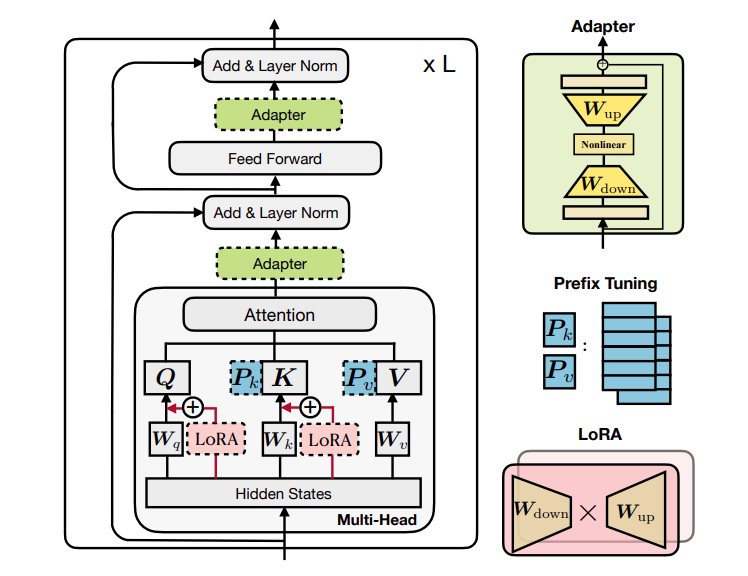

1.2 PEFT方法的架构和修改位置

二、ChatGLM3 Prefix-Tunning

基于ChatGLM3微调一个同时具有 NLU 和问答能力对话机器人

2.1 数据源

酒店预订场景：https://github.com/thu-coai/CrossWOZ

酒店数据库：https://github.com/thu-coai/CrossWOZ/blob/master/data/crosswoz/database/hotel_db.json

2.2 数据增强

• 从 CrossWOZ 数据集中抽取了只关于酒店的对话
• 利用 ChatGPT 进行如下修改和补充
  • 对设施的描述更口语化
    • “找一家有国际长途电话的酒店” -> “找一家能打国际长途的酒店”
  • 补充一定比例的多轮问答，和结束语对话（p=0.3）
    • 针对只提及一个酒店时的问答：“这个酒店的电话是多少”
    • 针对推荐多个酒店时的对比问答：“哪个酒店评分更高”
    • 结束语：“好的，祝您入住愉快”
  • 补充按酒店名（简称）、价格上限查询的对话（原数据中没有这类说法）

最终按 8:1:1 拆分训练集、验证集和测试

▶

原始样本

[
  {
    "role": "user",
    "content": "你好，我出差想去酒店住宿。请帮我推荐一家公共区域和部分房间提供wifi服务，评分是4分以上的酒店。"
  },
  {
    "role": "search",
    "arguments": {
      "facilities": ["公共区域和部分房间提供wifi"],
      "rating_range_lower": 4.0
    }
  },
  {
    "role": "return",
    "records": [
      {
        "name": "北京龙鼎华鼎云酒店",
        "type": "舒适型",
        "address": "北京朝阳区潘家园东里18号",
        "subway": "劲松地铁站D口",
        "phone": "010-52001188",
        "facilities": [
          "公共区域和部分房间提供wifi",
          "宽带上网",
          "国际长途电话",
          "吹风机",
          "24小时热水",
          "中式餐厅",
          "会议室",
          "无烟房",
          "商务中心",
          "洗衣服务",
          "行李寄存",
          "叫醒服务"
        ],
        "price": -1.0,
        "rating": 4.3,
        "hotel_id": 24
      }
    ]
  },
  {
    "role": "assistant",
    "content": "那您去北京龙鼎华鼎云酒店住宿吧，酒店质量很好。"
  }
]

▶

增强后样本

[
  {
    "role": "user",
    "content": "你好，我出差想去酒店住宿。请帮我推荐一家提供无线网络且评分在4分以上的酒店。"
  },
  {
    "role": "search",
    "arguments": {
      "facilities": ["无线网络"],
      "rating_range_lower": 4.0
    }
  },
  {
    "role": "return",
    "records": [
      {
        "name": "北京龙鼎华鼎云酒店",
        "type": "舒适型",
        "address": "北京朝阳区潘家园东里18号",
        "subway": "劲松地铁站D口",
        "phone": "010-52001188",
        "facilities": [
          "公共区域和部分房间提供wifi",
          "宽带上网",
          "国际长途电话",
          "吹风机",
          "24小时热水",
          "中式餐厅",
          "会议室",
          "无烟房",
          "商务中心",
          "洗衣服务",
          "行李寄存",
          "叫醒服务"
        ],
        "price": -1.0,
        "rating": 4.3,
        "hotel_id": 24
      }
    ]
  },
  {
    "role": "assistant",
    "content": "那您去北京龙鼎华鼎云酒店住宿吧，酒店质量很好。"
  },
  {
    "role": "user",
    "content": "这个酒店的评分是多少？"
  },
  {
    "role": "assistant",
    "content": "这个酒店的评分是4.3分。"
  },
  {
    "role": "user",
    "content": "好的，我决定入住北京龙鼎华鼎云酒店了。"
  },
  {
    "role": "assistant",
    "content": "好的，祝您入住愉快。"
  }
]

2.3 数据处理

▶

前置依赖代码

import json
import ast
import astunparse
from transformers import PreTrainedTokenizer
from torch.utils.data import Dataset
from copy import deepcopy
from typing import Dict, List

# text constants
FUNCTION_CALL_NAME     = 'tool_call'
FUNCTION_CALL_PREFIX   = '```python\n'
FUNCTION_CALL_POSTFIX  = '\n```'
TOOL_DEFINITION_PREFIX = 'Answer the following questions as best as you can. You have access to the following tools:\n'
CONVERSATOIN_KEY       = 'conversations'
TOOL_DESC_KEY          = 'tools'

def format_function_call(function_name: str, parameters: Dict[str, str]):
    function_name = ast.Name(id=function_name)
    keywords = [
        ast.keyword(arg=arg_name, value=ast.Constant(arg_value))
        for arg_name, arg_value in parameters.items()
    ]
    func_call = ast.Call(func=function_name, args=[], keywords=keywords)
    return astunparse.unparse(func_call).strip()

def sanity_check(tokens: List[int], target: List[int], tokenizer: PreTrainedTokenizer):
    print("Sanity Check >>>>>>>>>>>>>")
    for t, m in zip(tokens, target):
        decoded =  tokenizer.tokenizer.index_special_tokens[t] \
            if t in tokenizer.tokenizer.index_special_tokens \
            else tokenizer.decode([t])
        print("%20s: %6d -> %6d" % (repr(decoded), t, m))
    print("<<<<<<<<<<<<< Sanity Check")

    assert len(tokens) == len(target), f"length mismatch: {len(tokens)} vs {len(target)}"

2.3.1 基本拼接方式

2.3.2 多轮对话的拼接

ChatGLM 3 的方式

因为 CausalLM 是一直从左往右预测的，我们可以直接在多轮对话中标识出多段输出。具体如下：

角色special token用于标识分隔出多轮对话，同时也可以防范注入攻击

• <|system|> #系统提示词，指明模型可使用的工具等信息
• <|user|> #用户输入，用户的指令
• <|assistant|> #模型回复，或模型思考要做的事情
• <|observation|> #工具调用、代码执行结果

注意：这里<|role|>这种是一个 token，而不是一串文本，所以不能通过tokenizer.encode('<role>')来得到

角色后跟随的是 metadata，对于 function calling 来说，metadata 是调用的函数和相应参数；对其他角色的对话，metadata 为空

• 多轮对话 finetune 时根据角色添加 loss_mask
• 在一遍计算中为多轮回复计算 loss

---

<|system|>Answer the following questions as best as you can.

You have access to the following tools:\n[...]

<|user|> 北京的天气怎么样？

<|assistant|> 我需要调用天气预报工具来获取北京的天气信息。

<|assistant|>get_weather```python_call(location="北京")```

<|observation|> {"temperature_c": 12, "description": "haze"}

<|assistant|> 根据天气工具的信息，北京的天气是：温度 12 摄氏度，有雾。

<|user|> 这样的天气适合外出活动吗？

<|assistant|> 北京现在有雾，气温较低，建议您考虑一下是否适合外出进行锻炼。

<|user|>

---

高亮部分为需要计算 loss 的 token。注意<|assistant|＞后的内容和角色 token 都需要算 loss。

官方讲解：https://www.bilibili.com/video/BV1uC4y1J7yA

多轮对话处理代码

def format_conversation(item, tokenizer, conversation_key: str, tool_key: str):
    conversations = deepcopy(item[conversation_key])

    # Note: `loss_mask` here means whether *the prediction* of the token should take loss
    tokens, loss_masks = [tokenizer.get_command("[gMASK]"), tokenizer.get_command("sop")], [0, 0]

    def _update(_tokens: List[int], value: int = 1):
        value = int(value)
        tokens.extend(_tokens)
        loss_masks.extend([value] * len(_tokens))

    # insert system prompt for tools
    if tool_key in item:
        conversations.insert(0,
            {
                "role": "system",
                "content": TOOL_DEFINITION_PREFIX + json.dumps(item[tool_key], indent=4, ensure_ascii=False)
            }
        )

    for idx, conv in enumerate(conversations):
        loss = conv.get("loss", True)
        if conv['role'] in {'system', 'user'}:
            loss = False
        if conv['role'] == 'tool':
            # function call python code
            value = FUNCTION_CALL_PREFIX + format_function_call(FUNCTION_CALL_NAME, conv["parameters"]) + FUNCTION_CALL_POSTFIX
            text = tokenizer.build_single_message("assistant", conv["name"], value)
            _update(text, loss)

            # function call result
            value = conv.get('observation', None)
            if not isinstance(value, str):
                value = json.dumps(value, ensure_ascii=False)
            text = tokenizer.build_single_message("observation", "", value)
            _update(text, False)
        else:
            text = tokenizer.build_single_message(conv['role'], "", conv["content"])
            _update(text, loss)

    _update([tokenizer.eos_token_id], False)

    assert len(tokens) == len(loss_masks), f"length mismatch: {len(tokens)} vs {len(loss_masks)}"
    return tokens, loss_masks

2.3.3 ChatGLM 3 的数据加载

实际应用中，只需要将上述数据，与 ChatGLM 3 的标准数据格式对齐，就可调用其原生的数据加载器，自动完成数据拼接

ChatGLM 3 官方近期重构了代码，数据加载部分在：https://github.com/THUDM/ChatGLM3/blob/main/finetune_demo/finetune_hf.py

但这版重构后的代码未实现 tool 的拼接部分。带有 tool 拼接的早期版本，参考：https://github.com/THUDM/ChatGLM3/blob/4568c635e686e8e2053568d041f36c884cab328a/finetune_demo/preprocess_utils.py

▶

格式化后的数据样例

{
  "tools": [
    "search_hotels: 根据筛选条件查询酒店的函数\nparameters: {\"name\":\"酒店名称\",\"price_range_lower\":\"价格下限\",\"price_range_upper\":\"价格上限\",\"rating_range_lower\":\"评分下限\",\"rating_range_upper\":\"评分上限\",\"facilities\": \"酒店提供的设施\"}\noutput: 酒店信息dict组成的list"
  ],
  "conversations": [
    {
      "role": "user",
      "content": "请帮我找一家最低价格是300-400元，提供无烟房的经济型酒店。"
    },
    {
      "role": "assistant",
      "content": "我需要使用search_hotels工具来查询酒店"
    },
    {
      "role": "tool",
      "name": "search_hotels",
      "parameters": {
        "facilities": ["无烟房"],
        "price_range_lower": 300,
        "price_range_upper": 400,
        "type": "经济型"
      },
      "observation": [
        {
          "name": "飘HOME连锁酒店(北京王府井店)",
          "type": "经济型",
          "address": "北京东城区东安门大街43号",
          "subway": "灯市口地铁站A口",
          "phone": "010-57305888",
          "facilities": [
            "酒店各处提供wifi",
            "宽带上网",
            "吹风机",
            "24小时热水",
            "暖气",
            "无烟房",
            "早餐服务",
            "行李寄存",
            "叫醒服务"
          ],
          "price": 303.0,
          "rating": 4.3,
          "hotel_id": 152
        }
      ]
    },
    {
      "role": "assistant",
      "content": "推荐您去飘HOME连锁酒店(北京王府井店)。"
    }
  ]
}

数据加载代码

class MultiTurnDataset(Dataset):
    def __init__(self, data: List[dict], tokenizer: PreTrainedTokenizer, max_seq_length: int):
        super(MultiTurnDataset, self).__init__()
        self.tokenizer = tokenizer
        self.max_seq_length = max_seq_length
        self.data = data

    def __len__(self):
        return len(self.data)

    def __getitem__(self, i) -> dict:
        data_item = self.data[i]
        tokens, loss_masks = format_conversation(data_item, self.tokenizer, CONVERSATOIN_KEY, TOOL_DESC_KEY)

        # labels are used inside the model
        target_based_loss_mask = [False] + loss_masks[:-1]
        labels = [(t if m else -100) for t, m in zip(tokens, target_based_loss_mask)]

        tokens = tokens[:self.max_seq_length]
        labels = labels[:self.max_seq_length]
        tokens += [self.tokenizer.pad_token_id] * (self.max_seq_length - len(tokens))
        labels += [-100] * (self.max_seq_length - len(labels))

        assert len(tokens) == len(labels), f"length mismatch: {len(tokens)} vs {len(labels)}"

        return {
            "input_ids": tokens,
            "labels": labels
        }{% endfold %}


2.4 ChatGLM 3 Prefix-Tunning训练代码

▶

模型定义和训练过程中的命令行参数

模型相关参数

"""
文件中定义了模型定义和训练过程中的命令行参数
"""
from dataclasses import dataclass, field
from typing import Optional


@dataclass
class ModelArguments:
    """
    Arguments pertaining to which model/config/tokenizer we are going to fine-tune from.
    """

    model_name_or_path: str = field(
        metadata={"help": "Path to pretrained model or model identifier from huggingface.co/models"}
    )
    checkpoint_path: Optional[str] = field(
        default=None, metadata={"help": "Path to pt2 or lora finetuned checkpoint dir"}
    )
    ptuning_checkpoint: str = field(
        default=None, metadata={"help": "Path to p-tuning v2 checkpoints"}
    )
    config_name: Optional[str] = field(
        default=None, metadata={"help": "Pretrained config name or path if not the same as model_name"}
    )
    tokenizer_name: Optional[str] = field(
        default=None, metadata={"help": "Pretrained tokenizer name or path if not the same as model_name"}
    )
    cache_dir: Optional[str] = field(
        default=None,
        metadata={"help": "Where to store the pretrained models downloaded from huggingface.co"},
    )
    use_fast_tokenizer: bool = field(
        default=True,
        metadata={"help": "Whether to use one of the fast tokenizer (backed by the tokenizers library) or not."},
    )
    model_revision: str = field(
        default="main",
        metadata={"help": "The specific model version to use (can be a branch name, tag name or commit id)."},
    )
    use_auth_token: bool = field(
        default=False,
        metadata={
            "help": (
                "Will use the token generated when running `huggingface-cli login` (necessary to use this script "
                "with private models)."
            )
        },
    )
    resize_position_embeddings: Optional[bool] = field(
        default=None,
        metadata={
            "help": (
                "Whether to automatically resize the position embeddings if `max_source_length` exceeds "
                "the model's position embeddings."
            )
        },
    )
    quantization_bit: Optional[int] = field(
        default=None
    )
    pre_seq_len: Optional[int] = field(
        default=None
    )
    prefix_projection: bool = field(
        default=False
    )

数据相关参数

@dataclass
class DataTrainingArguments:
    """
    Arguments pertaining to what data we are going to input our model for training and eval.
    """
    train_file: Optional[str] = field(
        default=None, metadata={"help": "The input training data file (a jsonlines or csv file)."}
    )
    validation_file: Optional[str] = field(
        default=None, metadata={"help": "The input validation data file (a jsonlines or csv file)."}
    )
    test_file: Optional[str] = field(
        default=None, metadata={"help": "The input test data file (a jsonlines or csv file)."}
    )

    max_seq_length: Optional[int] = field(
        default=2048,
        metadata={
            "help": (
                "The maximum total input sequence length after tokenization. Sequences longer "
                "than this will be truncated."
            )
        },
    )

    max_source_length: Optional[int] = field(
        default=1024,
        metadata={
            "help": (
                "The maximum total input sequence length after tokenization. Sequences longer "
                "than this will be truncated, sequences shorter will be padded."
            )
        },
    )
    max_target_length: Optional[int] = field(
        default=128,
        metadata={
            "help": (
                "The maximum total sequence length for target text after tokenization. Sequences longer "
                "than this will be truncated, sequences shorter will be padded."
            )
        },
    )

    overwrite_cache: bool = field(
        default=False, metadata={"help": "Overwrite the cached training and evaluation sets"}
    )

    preprocessing_num_workers: Optional[int] = field(
        default=None,
        metadata={"help": "The number of processes to use for the preprocessing."},
    )

    max_seq_length: Optional[int] = field(
        default=1024,
        metadata={
            "help": (
                "The maximum total input sequence length after tokenization. Sequences longer "
                "than this will be truncated, sequences shorter will be padded."
            )
        },
    )

    pad_to_max_length: bool = field(
        default=False,
        metadata={
            "help": (
                "Whether to pad all samples to model maximum sentence length. "
                "If False, will pad the samples dynamically when batching to the maximum length in the batch. More "
                "efficient on GPU but very bad for TPU."
            )
        },
    )

    max_train_samples: Optional[int] = field(
        default=None,
        metadata={
            "help": (
                "For debugging purposes or quicker training, truncate the number of training examples to this "
                "value if set."
            )
        },
    )

微调相关参数

@dataclass
class PeftArguments:
    lora_rank: int = field(
        default=None,
        metadata={"help": "LoRA rank number"}
    )
    lora_alpha: int = field(
        default=32,
        metadata={"help": "LoRA alpha weight"}
    )
    lora_dropout: float = field(
        default=0.1,
        metadata={"help": "LoRA dropout probability"}
    )
    lora_checkpoint: str = field(
        default=None,
        metadata={"help": "Path to LoRA checkpoints"}
    )

▶

PrefixTrainer定义

"""
The Trainer class, to easily train a 🤗 Transformers from scratch or finetune it on a new task.
"""
import os
from typing import Optional
from transformers import Trainer

import torch
from transformers.modeling_utils import PreTrainedModel, unwrap_model
from transformers.utils import logging

logger = logging.get_logger(__name__)

WEIGHTS_NAME = "pytorch_model.bin"
TRAINING_ARGS_NAME = "training_args.bin"

class PrefixTrainer(Trainer):
    def __init__(self, *args, save_changed=False, **kwargs):
        self.save_changed = save_changed
        super().__init__(*args, **kwargs)

    def _save(self, output_dir: Optional[str] = None, state_dict=None):
        # If we are executing this function, we are the process zero, so we don't check for that.
        output_dir = output_dir if output_dir is not None else self.args.output_dir
        os.makedirs(output_dir, exist_ok=True)
        logger.info(f"Saving model checkpoint to {output_dir}")
        # Save a trained model and configuration using `save_pretrained()`.
        # They can then be reloaded using `from_pretrained()`
        if not isinstance(self.model, PreTrainedModel):
            if isinstance(unwrap_model(self.model), PreTrainedModel):
                if state_dict is None:
                    state_dict = self.model.state_dict()
                unwrap_model(self.model).save_pretrained(output_dir, safe_serialization=False, state_dict=state_dict)
            else:
                logger.info("Trainer.model is not a `PreTrainedModel`, only saving its state dict.")
                if state_dict is None:
                    state_dict = self.model.state_dict()
                torch.save(state_dict, os.path.join(output_dir, WEIGHTS_NAME))
        else:
            if self.save_changed:
                print("Saving PrefixEncoder")
                state_dict = self.model.state_dict()
                filtered_state_dict = {}
                for k, v in self.model.named_parameters():
                    if v.requires_grad:
                        filtered_state_dict[k] = state_dict[k]
                self.model.save_pretrained(output_dir, safe_serialization=False, state_dict=filtered_state_dict)
            else:
                print("Saving the whole model")
                self.model.save_pretrained(output_dir, safe_serialization=False, state_dict=state_dict)
        if self.tokenizer is not None:
            self.tokenizer.save_pretrained(output_dir, safe_serialization=False)

        # Good practice: save your training arguments together with the trained model
        torch.save(self.args, os.path.join(output_dir, TRAINING_ARGS_NAME))

▶

日志记录

import logging
import os
import sys
import torch
import json
import transformers
from transformers import (
    AutoConfig,
    AutoModel,
    AutoTokenizer,
    DataCollatorForSeq2Seq,
    HfArgumentParser,
    TrainingArguments,
    set_seed,
)
from trainer import PrefixTrainer
from arguments import ModelArguments, DataTrainingArguments
from data_preprocess import sanity_check, MultiTurnDataset

# 初始化日志记录
logger = logging.getLogger(__name__)

def setup_logger(training_args):
    logging.basicConfig(
        format="%(asctime)s - %(levelname)s - %(name)s - %(message)s",
        datefmt="%m/%d/%Y %H:%M:%S",
        handlers=[logging.StreamHandler(sys.stdout)],
    )
    # 配置huggingface的日志记录
    if training_args.should_log:
        transformers.utils.logging.set_verbosity_info()
    log_level = training_args.get_process_log_level()
    logger.setLevel(log_level)
    transformers.utils.logging.set_verbosity(log_level)
    transformers.utils.logging.enable_default_handler()
    transformers.utils.logging.enable_explicit_format()

    logger.warning(
        f"Process rank: {training_args.local_rank}, device: {training_args.device}, n_gpu: {training_args.n_gpu}"
        + f"distributed training: {bool(training_args.local_rank != -1)}, 16-bits training: {training_args.fp16}"
    )
    logger.info(f"Training/evaluation parameters {training_args}")

加载模型

def load_model(model_args):
    # 加载预训练的chatglm3-6b的model config
    config = AutoConfig.from_pretrained(model_args.model_name_or_path, trust_remote_code=True)
    config.pre_seq_len = model_args.pre_seq_len
    config.prefix_projection = model_args.prefix_projection
    # 加载预训练的chatglm3-6b的tokenizer
    tokenizer = AutoTokenizer.from_pretrained(model_args.model_name_or_path, trust_remote_code=True)
    # 判断是否加载pt2的checkpoint来继续训练
    if model_args.ptuning_checkpoint is not None:
        model = AutoModel.from_pretrained(model_args.model_name_or_path, config=config, trust_remote_code=True)
        prefix_state_dict = torch.load(os.path.join(model_args.ptuning_checkpoint, "pytorch_model.bin"))
        new_prefix_state_dict = {}
        for k, v in prefix_state_dict.items():
            if k.startswith("transformer.prefix_encoder."):
                new_prefix_state_dict[k[len("transformer.prefix_encoder."):]] = v
        model.transformer.prefix_encoder.load_state_dict(new_prefix_state_dict)
    else: # 不加载pt2 checkpoint则直接加载model
        model = AutoModel.from_pretrained(model_args.model_name_or_path, config=config, trust_remote_code=True)
    # 如果有设置quantization则以int数值加载不参与更新的参数，用以节省显存
    if model_args.quantization_bit is not None:
        print(f"Quantized to {model_args.quantization_bit} bit")
        model = model.quantize(model_args.quantization_bit)
    # pt2训练，为要训练的prefix_encoder参数使用更高数值精度的float32
    if model_args.pre_seq_len is not None:
        model = model.half()
        model.transformer.prefix_encoder.float()
    # 全量参数finetune训练，需要很高的显存配置
    else:
        model = model.float()

    return tokenizer, model

Prefix-Tuning微调主流程

def main():
    # 解析传入的命令行参数
    parser = HfArgumentParser((ModelArguments, DataTrainingArguments, TrainingArguments))
    model_args, data_args, training_args = parser.parse_args_into_dataclasses()
    # 初始化工作
    setup_logger(training_args)
    set_seed(training_args.seed)
    tokenizer, model = load_model(model_args)
    # 准备训练数据集并处理成所需格式
    if training_args.do_train:
        with open(data_args.train_file, "r", encoding="utf-8") as f:
            train_data = [json.loads(line) for line in f]

        train_dataset = MultiTurnDataset(
            train_data,
            tokenizer,
            data_args.max_seq_length,
        )

        #if training_args.local_rank < 1:
        #    sanity_check(train_dataset[0]['input_ids'], train_dataset[0]['labels'], tokenizer)
    if training_args.do_eval:
        with open(data_args.validation_file, "r", encoding="utf-8") as f:
            eval_data = [json.loads(line) for line in f]

        eval_dataset = MultiTurnDataset(
            eval_data,
            tokenizer,
            data_args.max_seq_length,
        )
    # 将数据集中样本批处理成张量
    data_collator = DataCollatorForSeq2Seq(
        tokenizer,
        model=model,
        label_pad_token_id=-100,
        pad_to_multiple_of=None,
        padding=False
    )
    # 配置trainer，相比base trainer重写了保存参数的功能
    trainer = PrefixTrainer(
        model=model,
        args=training_args,
        train_dataset=train_dataset if training_args.do_train else None,
        eval_dataset=eval_dataset if training_args.do_eval else None,
        tokenizer=tokenizer,
        data_collator=data_collator,
        save_changed=model_args.pre_seq_len is not None
    )
    # 开始训练
    if training_args.do_train:
        checkpoint = None
        if training_args.resume_from_checkpoint is not None:
            checkpoint = training_args.resume_from_checkpoint
        model.gradient_checkpointing_enable()
        model.enable_input_require_grads()
        trainer.train(resume_from_checkpoint=checkpoint)
        trainer.save_model()
        trainer.save_state()
    if training_args.do_eval:
        trainer.evaluate()

if __name__ == "__main__":
    main()

▶

训练脚本

#! /usr/bin/env bash

set -ex

LR=2e-2
PRE_SEQ_LEN=256
MAX_SEQ_LEN=3072

DATESTR=`date +%Y%m%d-%H%M%S`
RUN_NAME=hotel_pt2
OUTPUT_DIR=output/${RUN_NAME}-${DATESTR}
mkdir -p $OUTPUT_DIR

BASE_MODEL_PATH=/pathto/chatglm3-6b

CUDA_VISIBLE_DEVICES=0 python Prefix_Tunning.py \
    --do_train \
    --do_eval \
    --train_file ../data/train.chatglm3.jsonl \
    --validation_file ../data/dev.chatglm3.jsonl \
    --max_seq_length $MAX_SEQ_LEN \
    --preprocessing_num_workers 1 \
    --model_name_or_path $BASE_MODEL_PATH \
    --output_dir $OUTPUT_DIR \
    --per_device_train_batch_size 2 \
    --gradient_accumulation_steps 2 \
    --per_device_eval_batch_size 2 \
    --evaluation_strategy steps \
    --eval_steps 300 \
    --num_train_epochs 6 \
    --logging_steps 300 \
    --logging_dir $OUTPUT_DIR/logs \
    --save_steps 300 \
    --learning_rate $LR \
    --quantization_bit 4 \
    --pre_seq_len $PRE_SEQ_LEN 2>&1 | tee ${OUTPUT_DIR}/train.log

三、Llama 3 LoRA 训练

基于Llama3微调一个同时具有 NLU 和问答能力对话机器人

3.1 Llama 3 中实现类似 Function Calling 的效果

类似 ChatGLM 3 的实现方式

1. 自定义 user、assistant、search、return 四个角色
   • 因为只有一个 function，我们直接把 function 标识成 search
2. 每轮 assistant 和 search 前缀也由模型自动生成，我们以此判断是 function 还是文本回复
3. 类似 ChatGLM 3，我们以预留的特殊 token，来标识每个轮次的角色和轮次结束
   • 例如：<|start_header_id|>角色<|end_header_id|>内容 ... ...<|eot_id|>
   • 其中 <|start_header_id|>，<|end_header_id|>，<|eot_id|> 是 Llama 3 预留的特殊 token

3.1.1 Function Call 的样例

输入

<|start_header_id|>user<|end_header_id|>你好，请帮我推荐一个提供无烟房的舒适型酒店可以吗？<|eot_id|>

输出

<|start_header_id|>search<|end_header_id|>{"facilities": ["无烟房"], "type": "舒适型"}}<|eot_id|>

3.1.2 文本回复的样例

输入

<|start_header_id|>user<|end_header_id|>你好，请帮我推荐一个提供无烟房的舒适型酒店可以吗？<|eot_id|>

<|start_header_id|>search<|end_header_id|>{"facilities": ["无烟房"], "type": "舒适型"}}<|eot_id|>

<|start_header_id|>return<|end_header_id|>[{"name": "北京红驿栈酒店", "type": "舒适型", "address": "北京朝阳区东直门外春秀路太平庄 10 号(主副楼在一幢建筑里)", "subway": "东直门地铁站 E 口", "phone": "010-64171066", "facilities": ["公共区域和部分房间提供 wifi", "宽带上网", "国际长途电话", "吹风机", "24 小时热水", "暖气", "无烟房", "早餐服务", "接待外宾", "行李寄存", "叫醒服务"], "price": 344.0, "rating": 4.7, "hotel_id": 51}, {"name": "维也纳国际酒店(北京广安门店)", "type": "舒适型", "address": "北京西城区白广路 7 号", "subway": "广安门内地铁站 C 口", "phone": "010-83539988", "facilities": ["酒店各处提供 wifi", "宽带上网", "吹风机", "24 小时热水", "中式餐厅", "会议室", "无烟房", "商务中心", "早餐服务", "洗衣服务", "行李寄存", "叫醒服务"], "price": 553.0, "rating": 4.7, "hotel_id": 56}]}]<|eot_id|>

输出

<|start_header_id|>assistant<|end_header_id|>没问题，推荐你去北京红驿栈酒店和维也纳国际酒店(北京广安门店)，都挺好的。<|eot_id|>

3.2 LoRA 代码

▶

命令行参数配置

模型配置

from dataclasses import dataclass, field
from typing import Optional


@dataclass
class ModelArguments:
    """
    Arguments pertaining to which model/config/tokenizer we are going to fine-tune from.
    """
    model_name_or_path: str = field(
        metadata={"help": "Path to pretrained model or model identifier from huggingface.co/models"}
    )

LoRA配置

@dataclass
class PeftArguments:
    lora_rank: int = field(
        default=8,
        metadata={"help": "LoRA rank number"}
    )
    lora_alpha: int = field(
        default=32,
        metadata={"help": "LoRA alpha weight"}
    )
    lora_dropout: float = field(
        default=0.1,
        metadata={"help": "LoRA dropout probability"}
    )
    lora_checkpoint: str = field(
        default=None,
        metadata={"help": "Path to LoRA checkpoints"}
    )

数据处理配置

@dataclass
class DataTrainingArguments:
    """
    Arguments pertaining to what data we are going to input our model for training and eval.
    """
    prompt_column: Optional[str] = field(
        default=None,
        metadata={"help": "The name of the column in the datasets containing the full texts (for summarization)."},
    )
    response_column: Optional[str] = field(
        default=None,
        metadata={"help": "The name of the column in the datasets containing the summaries (for summarization)."},
    )
    history_column: Optional[str] = field(
        default=None,
        metadata={"help": "The name of the column in the datasets containing the history of chat."},
    )
    train_file: Optional[str] = field(
        default=None, metadata={"help": "The input training data file (a jsonlines or csv file)."}
    )
    validation_file: Optional[str] = field(
        default=None,
        metadata={
            "help": (
                "An optional input evaluation data file to evaluate the metrics (rouge) on (a jsonlines or csv file)."
            )
        },
    )
    test_file: Optional[str] = field(
        default=None,
        metadata={
            "help": "An optional input test data file to evaluate the metrics (rouge) on (a jsonlines or csv file)."
        },
    )
    overwrite_cache: bool = field(
        default=False, metadata={"help": "Overwrite the cached training and evaluation sets"}
    )
    preprocessing_num_workers: Optional[int] = field(
        default=None,
        metadata={"help": "The number of processes to use for the preprocessing."},
    )
    max_source_length: Optional[int] = field(
        default=1024,
        metadata={
            "help": (
                "The maximum total input sequence length after tokenization. Sequences longer "
                "than this will be truncated, sequences shorter will be padded."
            )
        },
    )
    max_target_length: Optional[int] = field(
        default=256,
        metadata={
            "help": (
                "The maximum total sequence length for target text after tokenization. Sequences longer "
                "than this will be truncated, sequences shorter will be padded."
            )
        },
    )
    ignore_pad_token_for_loss: bool = field(
        default=True,
        metadata={
            "help": "Whether to ignore the tokens corresponding to padded labels in the loss computation or not."
        },
    )

▶

数据处理代码

import json
from torch.utils.data import Dataset

class InputOutputDataset(Dataset):
    def __init__(self, data, tokenizer, args):
        super(InputOutputDataset, self).__init__()
        self.data = data
        self.tokenizer = tokenizer
        self.prompt_column = args.prompt_column
        self.response_column = args.response_column
        self.max_source_length = args.max_source_length
        self.max_target_length = args.max_target_length

    def __len__(self):
        return len(self.data)

    def __getitem__(self, i):
        item = self.data[i]
        # add_special_tokens 不在开头加 special_tokens
        context = self.tokenizer(
            build_prompt(item[self.prompt_column]),
            max_length=self.max_source_length,
            add_special_tokens=False)
        response = self.tokenizer(
            build_response(item[self.response_column]),
            max_length=self.max_target_length,
            add_special_tokens=False)
        input_ids = context["input_ids"] + response["input_ids"]
        attention_mask = context["attention_mask"] + response["attention_mask"]
        labels = [-100] * len(context["input_ids"]) + response["input_ids"]
        assert len(input_ids) == len(labels), f"length mismatch: {len(input_ids)} vs {len(labels)}"
        return {
            "input_ids": input_ids,
            "attention_mask": attention_mask,
            "labels": labels
        }

def build_prompt(context):
    if isinstance(context,str):
        context = json.loads(context)
    prompt = ''
    for turn in context:
        if turn["role"] in ["user","assistant"]:
            prompt += f'<|start_header_id|>{turn["role"]}<|end_header_id|>\n{turn["content"]}<|eot_id|>\n'
        else:
            if turn["role"] == "search":
                obj = turn["arguments"]
                filtered_obj = {k: v for k, v in obj.items() if v is not None}
                prompt += '<|start_header_id|>search<|end_header_id|>\n'
                prompt += json.dumps(filtered_obj,indent=4,ensure_ascii=False)
            else:
                obj = turn["records"]
                prompt += '<|start_header_id|>return<|end_header_id|>\n'
                prompt += json.dumps(obj,indent=4,ensure_ascii=False)
            prompt += '<|eot_id|>\n'
    return prompt

def build_response(response):
    if isinstance(response,str):
        response = json.loads(response)
    if response["role"] == "assistant":
        return '<|start_header_id|>assistant<|end_header_id|>\n' + response["content"] + '<|eot_id|>'
    else:
        obj = response["arguments"]
        filtered_obj = {k: v for k, v in obj.items() if v is not None}
        return '<|start_header_id|>search<|end_header_id|>\n' + json.dumps(filtered_obj,indent=4,ensure_ascii=False) + '<|eot_id|>'

def parse_json(string):
    search_pos = 0
    # 开始寻找第一个 '{'
    start = string.find('{', search_pos)
    if start == -1:
        return None
    # 从找到的 '{' 位置开始，向后寻找最后一个 '}'
    end = string.rfind('}', start)
    if end == -1:
        return None
    # 提取并尝试解析 JSON
    json_string = string[start:end + 1]
    try:
        obj = json.loads(json_string)
        return obj
    except json.JSONDecodeError:
        return None

模型加载

import json
import torch
from transformers import (
    AutoTokenizer,
    AutoModelForCausalLM,
    BitsAndBytesConfig,
    DataCollatorForSeq2Seq,
    HfArgumentParser,
    TrainingArguments,
    Trainer
)
from peft import LoraConfig, TaskType, get_peft_model
from arguments import ModelArguments, DataTrainingArguments, PeftArguments
from data_preprocess import InputOutputDataset

def load_model(model_name):
    bnb_config = BitsAndBytesConfig(
        load_in_4bit=True,
        bnb_4bit_use_double_quant=True,
        bnb_4bit_quant_type="nf4",
        bnb_4bit_compute_dtype=torch.float16,
    )
    n_gpus = torch.cuda.device_count()
    model = AutoModelForCausalLM.from_pretrained(
        model_name,
        quantization_config=bnb_config,
        device_map="auto", # dispatch efficiently the model on the available ressources
        max_memory = {i: '24500MB' for i in range(n_gpus)},
    )
    tokenizer = AutoTokenizer.from_pretrained(model_name, trust_remote_code=True)
    tokenizer.pad_token = tokenizer.eos_token
    return model, tokenizer

LoRA主流程

def main():
    parser = HfArgumentParser((ModelArguments, DataTrainingArguments, PeftArguments, TrainingArguments))
    model_args, data_args, peft_args, training_args = parser.parse_args_into_dataclasses()

    lora_config = LoraConfig(
        inference_mode=False,
        task_type=TaskType.CAUSAL_LM,
        target_modules=["q_proj", "k_proj", "v_proj"],#Q,K,V都进行微调
        r=peft_args.lora_rank,
        lora_alpha=peft_args.lora_alpha,
        lora_dropout=peft_args.lora_dropout
    )

    model, tokenizer  = load_model(model_args.model_name_or_path)
    model = get_peft_model(model, lora_config)
    model.print_trainable_parameters()

    data_collator = DataCollatorForSeq2Seq(
        tokenizer=tokenizer,
        padding=True
    )

    if training_args.do_train:
        with open(data_args.train_file, "r", encoding="utf-8") as f:
            train_data = [json.loads(line) for line in f]
        train_dataset = InputOutputDataset(train_data, tokenizer, data_args)
    if training_args.do_eval:
        with open(data_args.validation_file, "r", encoding="utf-8") as f:
            eval_data = [json.loads(line) for line in f]
        eval_dataset = InputOutputDataset(eval_data, tokenizer, data_args)

    trainer = Trainer(
        model=model,
        tokenizer=tokenizer,
        data_collator=data_collator,
        args=training_args,
        train_dataset=train_dataset if training_args.do_train else None,
        eval_dataset=eval_dataset if training_args.do_eval else None,
    )

    if training_args.do_train:
        model.gradient_checkpointing_enable()
        model.enable_input_require_grads()
        trainer.train()
    if training_args.do_eval:
        trainer.evaluate()

if __name__ == "__main__":
    main()

▶

训练脚本

#! /usr/bin/env bash

set -ex

LR=2e-4

DATESTR=`date +%Y%m%d-%H%M%S`
RUN_NAME=hotel_qlora
OUTPUT_DIR=output/${RUN_NAME}-${DATESTR}
mkdir -p $OUTPUT_DIR

MODEL_PATH="/pathto/Meta-Llama-3-8B-Instruct"

CUDA_VISIBLE_DEVICES=0 python main_qlora.py \
    --do_train \
    --do_eval \
    --train_file ../data/train.llama3.jsonl \
    --validation_file ../data/dev.llama3.jsonl \
    --prompt_column context \
    --response_column response \
    --model_name_or_path "${MODEL_PATH}" \
    --output_dir $OUTPUT_DIR \
    --max_source_length 2048 \
    --max_target_length 1024 \
    --per_device_train_batch_size 1 \
    --per_device_eval_batch_size 1 \
    --gradient_accumulation_steps 4 \
    --evaluation_strategy steps \
    --eval_steps 300 \
    --num_train_epochs 2 \
    --logging_steps 300 \
    --logging_dir $OUTPUT_DIR/logs \
    --save_steps 300 \
    --learning_rate $LR \
    --lora_rank 16 \
    --lora_alpha 32 \
    --lora_dropout 0.1 \
    --optim "paged_adamw_8bit" \
    --warmup_ratio 0.1 \
    --fp16 2>&1 | tee ${OUTPUT_DIR}/train.log

工具

HuggingFace 官方推出一个在线工具，可以估算模型的显存使用情况。

参考

1. 概覽 Parameter-Efficient Fine-Tuning (PEFT)
2. Ladder Side-Tuning：预训练模型的“过墙梯”
3. Parameter-efficient Fine-tuning (PEFT): Overview, benefits, techniques and model training
4. PEFT：在低资源硬件上对十亿规模模型进行参数高效微调
5. 参数高效微调方法（Parameter-Efficient Fine-Tuning，PEFT）概述
6. 大模型参数高效微调技术原理综述
7. Finetuning LLMs Efficiently with Adapters
8. LLM微调系列1: Adapter
9. A Gentle Introduction to 8-bit Matrix Multiplication for transformers at scale using Hugging Face Transformers, Accelerate and bitsandbytes
10. peft模型微调_IA3
11. Parameter-Efficient Transfer Learning for NLP
12. Get Insight from your Business Data - Build LLM application with PEFT (with LoRA) using 🤗 Hugging Face
13. TOWARDS A UNIFIED VIEW OF PARAMETER-EFFICIENT TRANSFER LEARNING
